Practical framing for a comparative look

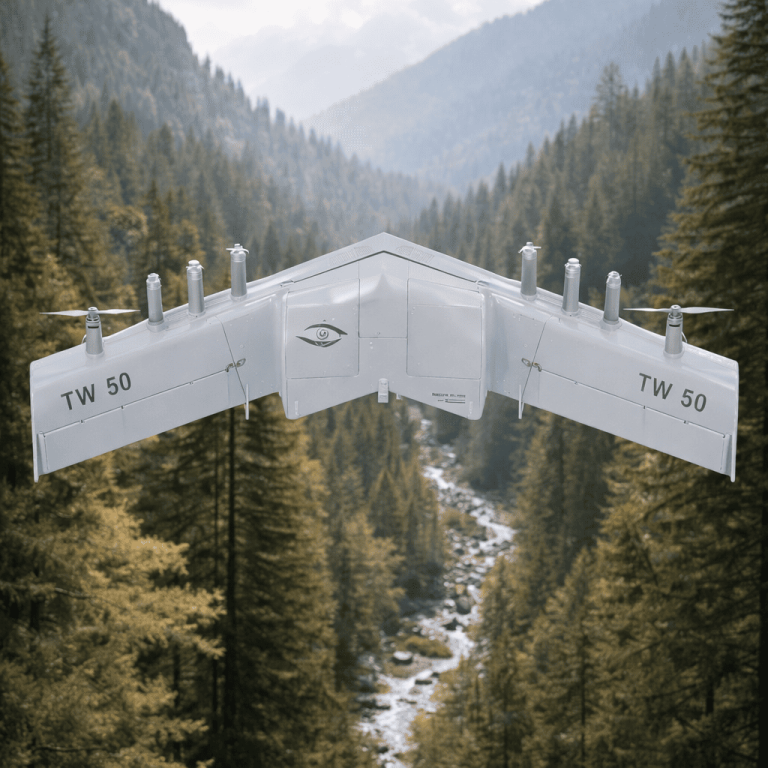

Choosing the right sensor mix for a vtol fixed wing drone comes down to concrete trade-offs: detectability, weight, power draw, and mission profile. This Comparative Insight piece walks through those trade-offs plainly, weighing thermal imaging against I2 photocathode (intensified night vision) and how sensor fusion changes the outcome for endurance, payload, and ISR performance.
What thermal imaging and I2 photocathodes actually bring
Thermal imaging maps heat—useful for detecting engines, vehicles, and recently-active people in day or night. An I2 photocathode system amplifies low-light photons to deliver detail in starlight or moonlight conditions. Both are EO/IR modalities that serve ISR, but they excel in different contexts: thermal for contrast against background, I2 for scene detail where temperature contrast is low. That distinction shapes sensor selection and how fusion pays off operationally.
Architectures for optical fusion
There are two practical fusion approaches in the field. One is hardware-level co-boresight fusion, physically aligning a thermal sensor and an intensified camera on a stabilized gimbal. The other is software-level sensor fusion—registering the two streams in a processor to overlay thermal blobs on a high-resolution night scene. Each approach affects payload weight, compute needs, and latency. Sensor fusion introduces extra bandwidth and processing requirements, but it can dramatically reduce false positives during multi-hour sorties.
Comparative strengths for mission types
Match sensors to mission: persistent surveillance favors thermal-first setups because heat signatures remain reliable at range and through light obscurants. Close-in target identification benefits from I2 detail. For tactical patrols or border monitoring, a balanced fusion stack improves cueing—thermal triggers a hot spot, I2 confirms the vehicle or person identity. In Ukraine, for instance, operators adapted mixed-sensor packages to extend night operations and reduce exposure times—an observed shift in practice rather than a formal study, but one that’s telling about operational value.
Design trade-offs and common mistakes
Packing both systems into a single airframe can feel like an obvious win—yet the mistakes happen around power and weight budgeting. People often underestimate the thermal cooler draw or overfit the payload bay, which reduces endurance. Another common misstep: neglecting sensor alignment and calibration after vibration and landing cycles. Fix the mounting and validate boresight alignment regularly—small mechanical shifts will wreck your geo-registration. Also, don’t forget environmental limits: thermal contrast drops at dawn, and I2 suffers in dense fog—so plan sensor tasking by expected conditions.
Integration tips for operators and engineers
Start with the mission profile and back-calculate endurance and payload. Use lightweight gimbals to keep total mass down, and select a processing unit that supports real-time sensor fusion without compromising flight-control latency. Prioritize robust synchronization between sensors—timestamping matters. Field-test in representative conditions; lab alignment won’t catch platform flex under real winds. And log everything—analysis of recorded sorties reveals consistent alignment drift, which you can then correct in firmware or maintenance cycles.
Advisory: three metrics to evaluate fusion systems
1) Detection-to-identification ratio: measure how often a thermal cue leads to a confirmed I2 identification at operational standoff. That ratio tells you whether fusion improves actionable intelligence or just adds data.
2) Endurance impact per payload kilogram: quantify how much flight time each additional sensor adds in real sorties. Value systems that buy identification gains for minimal endurance loss.
3) Time-to-cue latency: measure the end-to-end time from thermal detection to fused visualization on the operator display. Shorter latency keeps operators in the loop—and reduces exposure during contested operations.
These metrics guide procurement and tuning, and they make clear the trade-offs for the platform chosen—especially when comparing multirotor alternatives to a fixed wing vertical takeoff drone, which typically offers longer on-station time but different payload and stabilization constraints.
Good integration turns optical fusion from a nice-to-have into mission advantage—small hardware choices, careful calibration, and three clear metrics will get you there. Military Hub. —
