Problem: Enclosures collapse under clamping, production stops

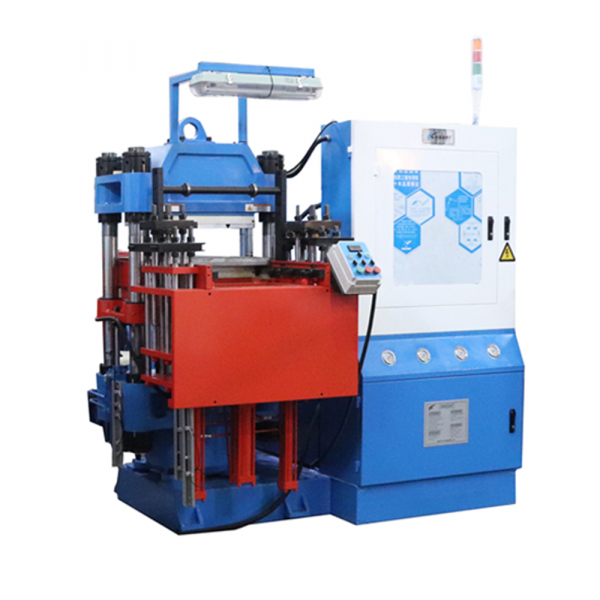

Many shops in Rayong and other ASEAN hubs find same problem: enclosure flex under heavy clamps, molds shift, parts scrap. For rubber parts this is worse because cure time and pressure demand steady contact. A practical fix sits at machine architecture — not just stronger bolts. Start by reviewing the actual machine: a reliable rubber vulcanizing machine needs enclosure stiffness that matches its clamping force and production cadence.
Why high-stiffness enclosure matters
When enclosure deflects, mold faces misalign. Result: uneven vulcanization, flash, dimensional out-of-spec. High stiffness keeps platen parallel, keeps hydraulic system loads predictable, and reduces cycle variation. For high-tonnage presses, stiffness equals repeatability, and repeatability equals fewer rejects.
Blueprint: Practical engineering steps
Design fast, but design smart. Follow these core moves.
– Structural frame: use box-section frames with internal ribs. Thick plates alone not enough; ribs control local bending.
– Load path: ensure clamping force paths go straight to foundation. Avoid long, cantilevered brackets that create torque on platen.
– Platen sizing: larger platen area spreads load. Match platen stiffness to expected tonnage so deflection stays under allowable tolerance for your mold.
– Alignment features: dowel-guided tie bars or linear guideways reduce lateral drift. For rubber molds you want consistent face-to-face contact every cycle.
– Hydraulics and control: tune the hydraulic system for smooth pressure ramp and accurate holding. A harsh pressure spike can flex a weak enclosure.
– Thermal and cure concerns: account for heat expansion during vulcanization. Materials and fastener patterns should allow predictable growth so alignment stays true.
Material and fabrication choices that work
Choose materials for stiffness and weldability. Seamless plates plus welded ribs work well. Where possible, mill critical surfaces for flatness rather than relying on as-welded faces. Use finite-element checks on key nodes — but keep the models simple and tied to measured loads from your press cycles.
Common mistakes and fixes
Many engineers jump to bigger cylinders or higher clamping force. That often hides the real issue: a flexible enclosure. Fix the structure first, then scale tonnage. Another typical error: neglecting platen parallelism after welding. Machine will show good static numbers but fail under dynamic load — so test under full-cycle conditions.
Also, do not ignore maintenance. Loose tie-bar clamps and uneven gasket loads gradually ruin alignment — a small problem becomes big. — Keep inspection checklist short and regular.
Supplier and design checks: how to verify claims
When you evaluate vendor designs or retrofit plans, ask for three concrete items: measured deflection data under specified clamping force, details of material thickness and rib geometry, and a description of the hydraulic control strategy. Cross-check these with factory floor reality — visit a similar machine in operation if possible. Seeing how a vulcanization press behaves under long runs tells more than drawings alone.
Real-world anchor and options
In Thailand’s gasket and hose workshops around Rayong, teams often retrofit frames rather than replace presses — because a proper enclosure upgrade buys many more production hours. If you consider new equipment, compare hardened frames from reputable builders and proven designs from vendors who publish performance numbers. For example, a modern rubber vulcanization machine spec sheet should show platen deflection at rated tonnage, not just cylinder size.
Advisory: Three golden rules to choose right
1) Structural stiffness metric: insist on measured platen deflection at rated clamping force (in mm under load). Lower is better; know your tolerance.
2) Proven load path: verify welded ribs, tie-bar arrangement, and foundation interface. Ask for photos of the internal frame and for a simple FEA summary tied to measured loads.
3) Control-and-maintenance fit: confirm hydraulic regulation precision and a short maintenance checklist. A tight control loop keeps cure time consistent and reduces stress on the frame.
These rules lead you to machines that produce reliably and lower total cost. For real, practical plant value, partner with builders who publish real test numbers and support upgrades — and you get results sooner than you think. HWAYI. —
